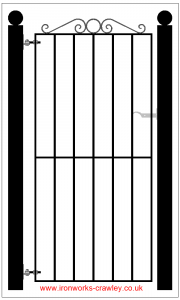

Side gate 1

A single side gate with a plain design. Centre cross bar to provide support.

Despite being considered a budget gate due to wider bar spacings, this is still made to a very high specification. With 30mm x 10mm flat bar for frame and 12mm round for the uprights. Scroll work is made from 13mm x 5mm flat.

On a 840mm wide (2ft 9inch) gate the gaps between bars are around 110mm wide
On a 915mm wide (3ft) gate the gaps increase to 122mm
on a 990mm (3ft 3 inch) gate the gaps further increase to 134mm

If the gap is to wide for your needs look at the 7 bar version of this gate

Dimensions for height are 1800mm to the top of the frame. when hung this allows for 50mm ground clearance underneath. But as all are made to order this dimension can easily be changed.

Gates are supplied with adjustable hinges allowing for width adjustment of around +/- 20mm. This makes them ideal if the hanging wall isn’t perfectly level. Allowing the hinges to adjust to correct for an unlevel post or wall.

Gate hinges can be supplied in two formats. Standard hinges that sit between a wall or post or hinges that fit to the back of a post.

Price

Every thing is made to measure, prices are for guidance. There are no addition charges for odd sizes. So a 950mm gate will be the same as a 990mm gate.

Every thing is made to measure, so prices are for guidance

Other options for steel sizes are available 40mm x 10mm for frame and 16mm or 20mm for upright. Alternatively 12mm square could be used for the uprights.

Please email for more details if you wish to change material specs i can email back with price details.
